Bags in box packaging machine

Short Description:

This bag in box packaging machine is the latest product developed by our company. It features a wide range of applications, high production efficiency, and the ability to serve multiple purposes with one machine. It meets the requirements of the Good Manufacturing Practice (GMP) for pharmaceutical production in China.

This machine can be used for packaging electronic products, food, cosmetics, and related industries, with a broad application range. It can be adapted to different user requirements by regularly changing the products, and the mold adjustment time is short. The assembly and debugging are simple. The cartonning machine’s exit can be matched with various types of middle box film packaging equipment. It is suitable for both large-scale production of single varieties and small-scale production of multiple varieties as per user needs.

Send email to us

Product Detail

Product Tags

Bags in box packaging machine

Performance characteristics:

It operates in an intermittent design, controlled by PLC, with a simple structure and easy maintenance. This machine automatically completes the processes of box feeding, box opening, and box sealing.
The entire machine has a high cartonning speed, low mechanical wear, high output, and low mechanical operating speed.
It features automatic vacuum box picking and a large-angle box opening, ensuring the accuracy of box opening.
The box feeding system operates intermittently and is equipped with a push-in overload protection function to ensure the safe entry of products into the box.
This machine is easier to adjust and maintain. It can be equipped with various box closing methods and other devices. When changing products of different sizes within the equipment size range, only a few parts need to be replaced.
The machine frame and machine plate have sufficient strength and rigidity. The main drive motor and clutch brake of the machine are installed inside the frame, and the transmission systems are installed on the machine plate. The torque overload protector can disengage the main drive motor and each transmission part in case of overload to protect the machine parts from damage.
Safety features:

No box: No product entry; the entire machine automatically stops and sounds an alarm.

No product: The box waits and sounds an alarm.

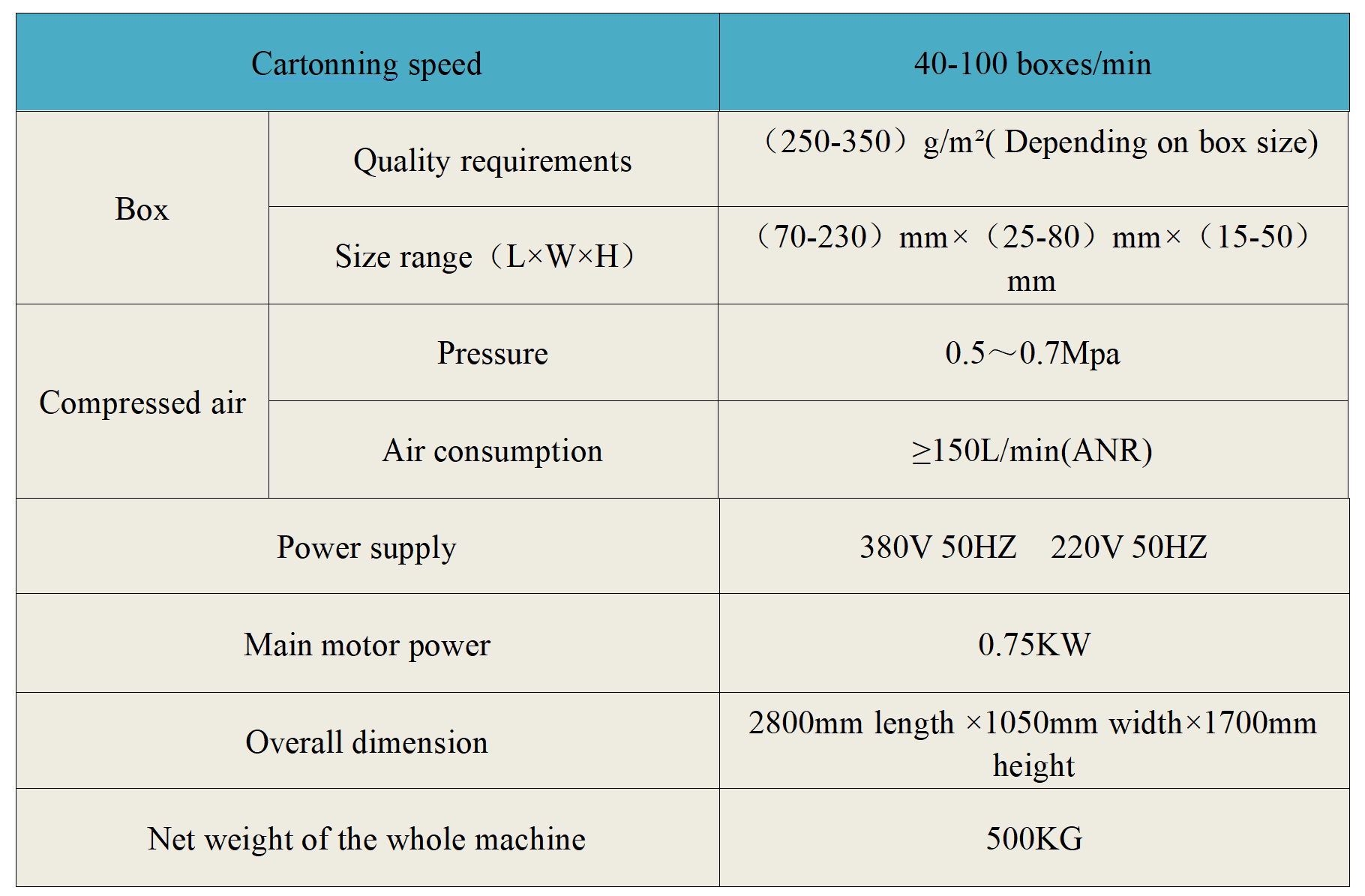

Main Technical Parameters
