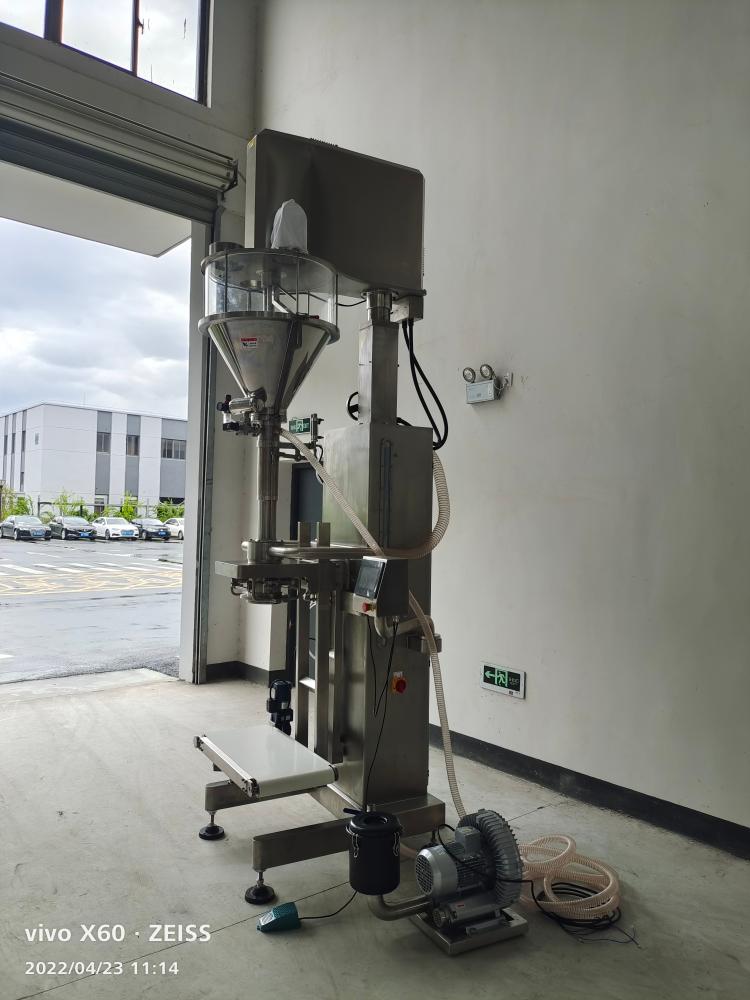

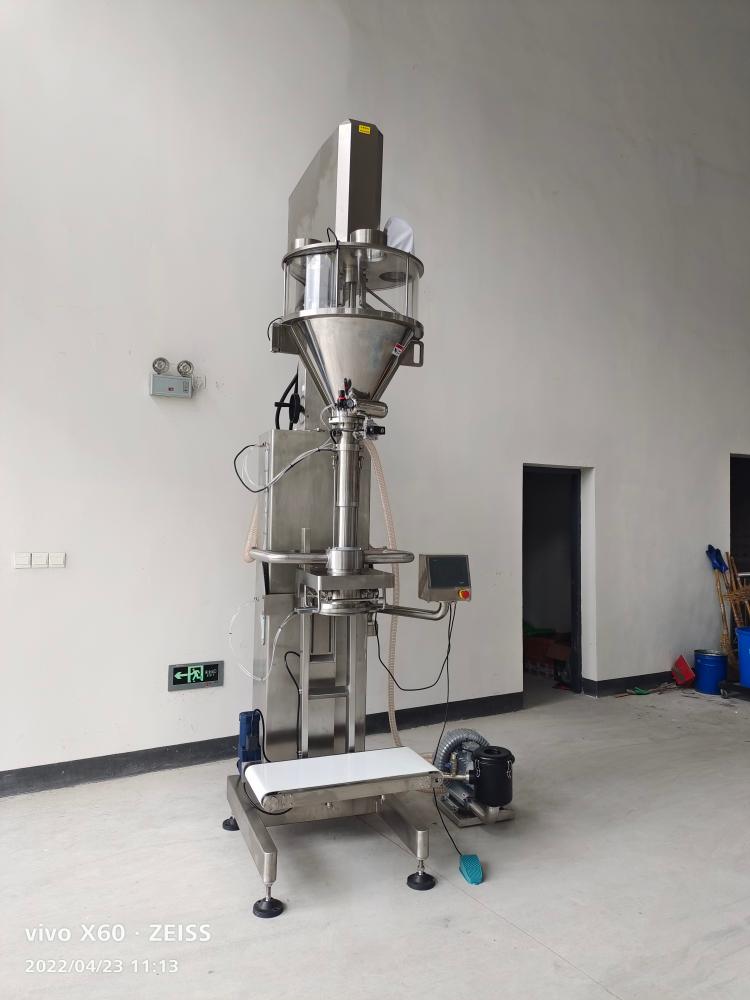

The Semi Automatic Bagging Machine is a versatile and cost-effective packaging solution designed for efficiently filling and sealing various types of bags with powders, granules, or fine particulate materials. The equipment completes key steps such as bag loading, weighing, conveying and sealing with manual assistance, combining human operation with automatic control to achieve a balance between efficiency and cost.
Engineered for flexibility, the semi automatic bagging system allows operators to manually position the bag while the machine performs precise weighing and filling functions. It is compatible with a wide range of bag formats, including paper bags, woven sacks, plastic pouches, and laminated bags, supporting filling capacities typically ranging from 1kg to 50kg.
Semi-Automatic Bagging Machine Core Advantages
Labor Savings: The semi-automated design allows a single operator to efficiently complete multiple bagging operations, reducing labor costs.
Adaptability: The machine supports pre-placed or manual bag insertion, suitable for packaging products in various formats (paper, plastic, cloth, etc.) and weight ranges (e.g., 10–25 kg).
Precise Weighing: Equipped with a high-precision load cell, the weighing error can be controlled to within ±0.1%, making it suitable for industries such as grain, feed, and chemical powders.
Optional Modules: Popular modules such as rotary knob height adjustment, sealed air pump dust removal, and inline bagging systems are available, providing targeted and highly customizable solutions.
Process Description (Semi-automatic Packaging Process Example)
Operator pre-places the bag (or inserts it into the bag opening);
The machine initiates the weighing process;
Rapid filling to 90% of the target weight;
Automatically switches to slow filling to accurately achieve the set weight;
After filling is complete, the machine automatically stops and the operator removes the bag;
If equipped with a bag sealing module, manual or heat sealing operations can be performed directly.
Semi Automatic Bagging Machine Application
The Semi Automatic Bagging Machine is a highly adaptable packaging solution widely used across industries that require efficient, accurate, and cost-effective bagging of powders, granules, or fine materials. It serves as a flexible middle-ground option between manual labor and fully automated systems, offering greater operational control while reducing labor intensity.
This type of equipment is particularly suited for medium-scale production environments where frequent product changes, varied bag formats, or limited automation budgets exist. It is commonly found in sectors such as:
Food & Beverage Processing (e.g., flour, sugar, spices, milk powder)
Agricultural & Feed Industry (e.g., animal feed, fertilizers, seeds)
Chemical Manufacturing (e.g., additives, pigments, detergent powders)
Construction Materials (e.g., cement additives, dry mortar, gypsum powder)
Pharmaceuticals & Nutraceuticals (e.g., protein powders, herbal extracts, vitamin blends)
Optional Configurations for Semi Automatic Bagging Machine
To enhance functionality and adapt to different packaging environments, the Semi Automatic Bagging Machine can be equipped with a variety of optional configurations. These add-ons help improve accuracy, hygiene, safety, and automation levels, allowing users to tailor the machine to specific material properties and operational requirements.
| Option | Description |
| Dust Extraction System | Minimizes airborne dust during filling, ensuring a cleaner workspace and safer working conditions. |
| Bag Holding & Clamping Unit | Secures the bag in place during filling to avoid leakage and misalignment; adjustable for various bag sizes. |
| Height-Adjustable Nozzle | Allows vertical adjustment of the filling nozzle to accommodate different bag heights. |
| Vibrating Hopper/Tray | Enhances product flow and compaction, ideal for powders prone to bridging or clumping. |
| Online Check Weigher | Provides real-time weight feedback and automatic rejection of over/underweight bags. |
| Integrated Sealing System | Adds automatic bag sealing (heat sealing or sewing) to complete the packaging process. |
| Touchscreen HMI & Recipe Memory | Simplifies operation with programmable recipes for different materials and bag types. |
| Conveyor Integration | Enables smooth transfer of filled bags to downstream processes like sealing or palletizing. |
| Explosion-Proof Design (ATEX) | Suitable for handling flammable or volatile materials; ensures compliance with safety standards. |
| Stainless Steel Contact Parts | Offers food-grade or corrosion-resistant construction (304/316L) for hygienic or harsh materials. |
Why Choose Shiputec for Semi Automatic Bagging Machines
As a professional manufacturer of powder packaging equipment, Shiputec specializes in the design, development, and production of Semi Automatic Bagging Machines tailored for various industries. With years of technical expertise and a strong focus on precision engineering, we provide solutions that combine efficiency, accuracy, and operational flexibility.
Our machines are built to meet the evolving needs of mid-scale producers across sectors such as food, agriculture, chemicals, and construction materials. Whether you’re handling fine powders or coarse granules, our semi automatic bagging systems are designed to deliver consistent performance under real-world production conditions.
Built for reliability and scalability, the Shiputec Semi Automatic Bagging Machine is the ideal choice for manufacturers seeking a durable, efficient, and customizable solution for powder and granule packaging.
Post time: Aug-04-2025
