Butter Foil Packaging Machine

Short Description:

A machinery for packaging of products like margarine, butter, quark, edible fats and of other paste products like fats or cheese into aluminium foil, greaseproof paper or other suitable materials.

Send email to us

Product Detail

Product Tags

DESCRIPTION OF THE MACHINE - general data

Main dimensions: lenght x width x height

2,3 m 2,8 m 1,55 m

Weight: 1450 kg

Feeding of packing：adjustable by transport rollers

Packing material: aluminium foil, greaseproof paper or other suitable materials

Packing format: lenght x width x height

min 70 x 50 x 31 mm,

max 100 x 75 x 43

Dosing range: 50 g – 300 g

Folding: adjustable, setting up the folding depending on used packing material

Discharge: via conveyor belt, height above the floor 840 +/- 20 mm, adjustable, horizontal, continuous

Centering device

(optional): adjustable, photocell – (optional)

Coding device: thermoprint by thermo-pressing-ribbon (various colours) – (optional), or any kind of Ink-jet (depending on customer choice) or just a signal to customer´s existing dating device

Output:adjustable in range from 60 up to 110 cycles/min, depending on the quality of the packing material and product consisency

Engine: 3 phase engine (2.2kW; 1.500 rpm) with brake frequency changer with regulator, voltage system 220V / 60 Hz

FUNCTION PRINCIPLE – general data

The wrapping material is fed from the reel, cut laterally and placed into a cell in the turn table, where it forms an open wrapper bag. The pasty product, fo pumpable consistency, is volumetrically dosed and filled into the wrapper bag. Finally, the packet is closed and calibrated, thus ensuring sharp edges.

STANDARD OUTFIT – adapted for this concrete demand

Basic packaging format 100x75mm with variable height 29-36mm for dosing range 200-250g
filling head designed for direct input of the product including compensator safety features including safety sensors

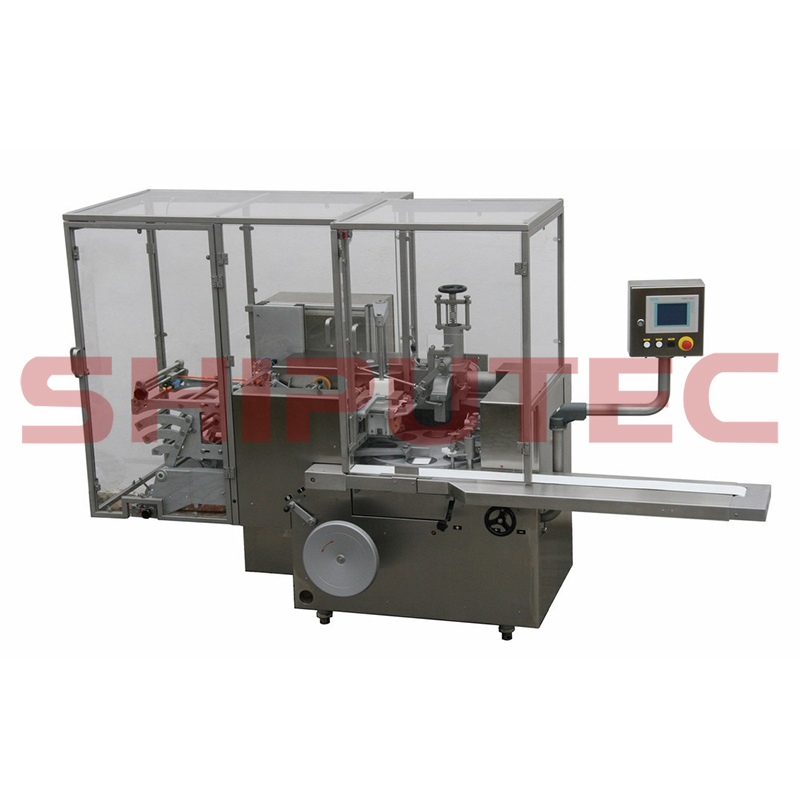

Safety guarding and stainless steel covering of the machine – high version (acrylic glass as shown on the picture above)
frequency changer with regulator
control case: el. switch board on the machine
computer control: PLC SIEMENS – touch screen with visualition
stainless steel trough with augers and cover
centering device with photocell
central system of lubrication
no dating device in basic outfit, just signal to customer´s existing dating device if any
