Semi-auto Block Margarine Packaging Machine

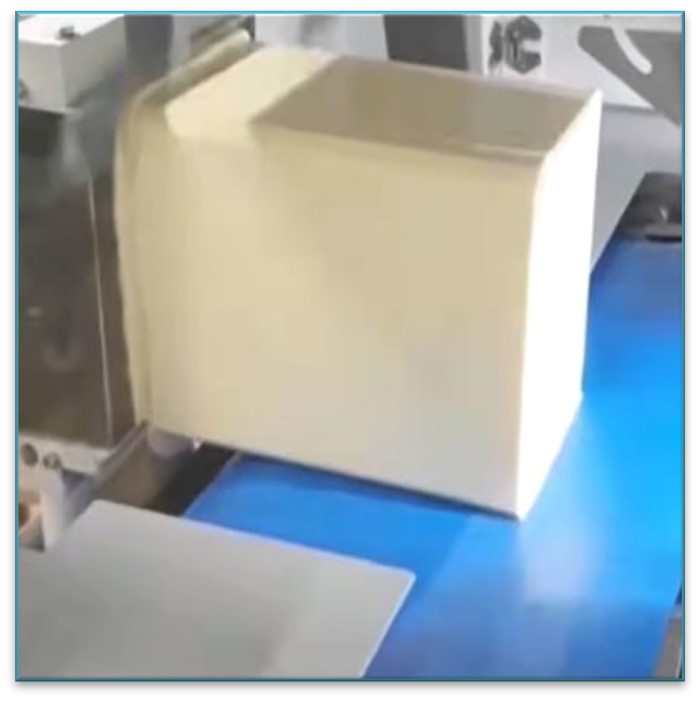

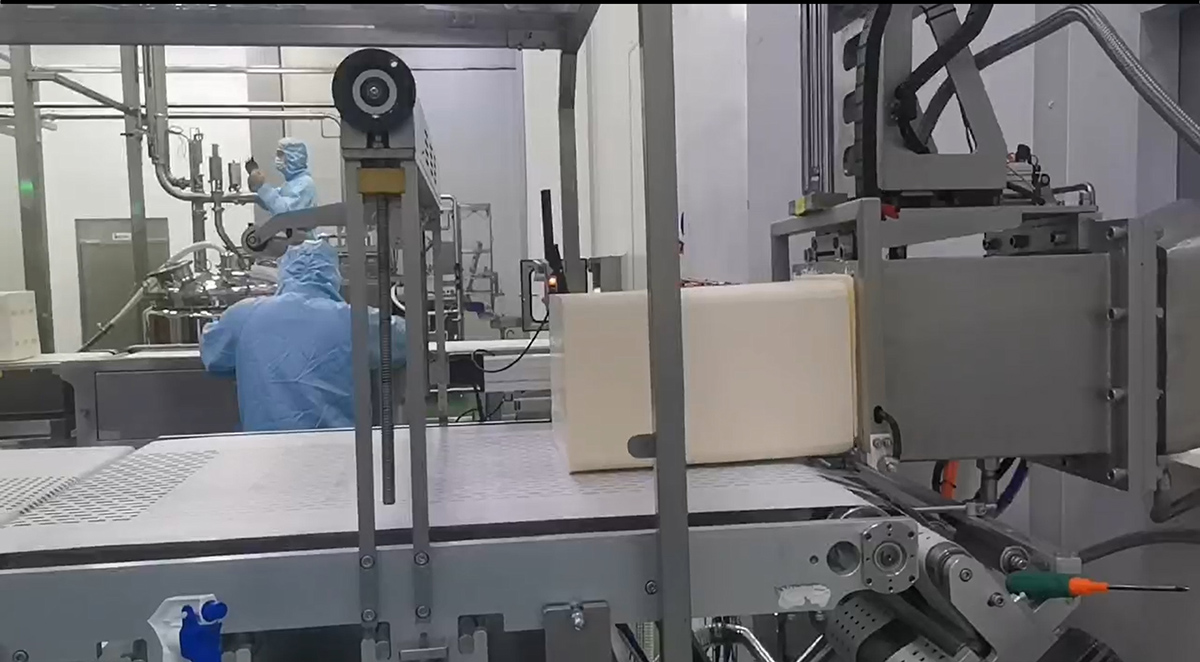

The packaging unit includes the block cutting device, film feeding device and film folding table. When the block/sheet margarine come out from the resting tube, it will be cut according to set weight/length, then enter the belt conveyor, the roll film is fed and adsorbed on the surface of belt, and at the bottom of block margarine, the film will be cut when reach the set length, the block margarine will be transferred to the operation table, the operator shall fold the film manually, after that put the block margarine into cartons.

• Capacity : 800-1000kg/h base on 10kg/block
• Block length : 240mm≤L≤400mm
• Block width : 240mm≤W≤320mm
•  Block height : 30mm≤H≤200mm
• The cutting blade is heated by constant temperature to ensure that the temperature of the cutting tool is constant.
•  The blade adopts special material and coated with Teflon. Constant tension mechanism is adopted at both ends to ensure the quality cutting effect, and no scorching problem.
•  Fully covered by safety cover (left, top and right side, totally 3 sides).
