 Product overview:

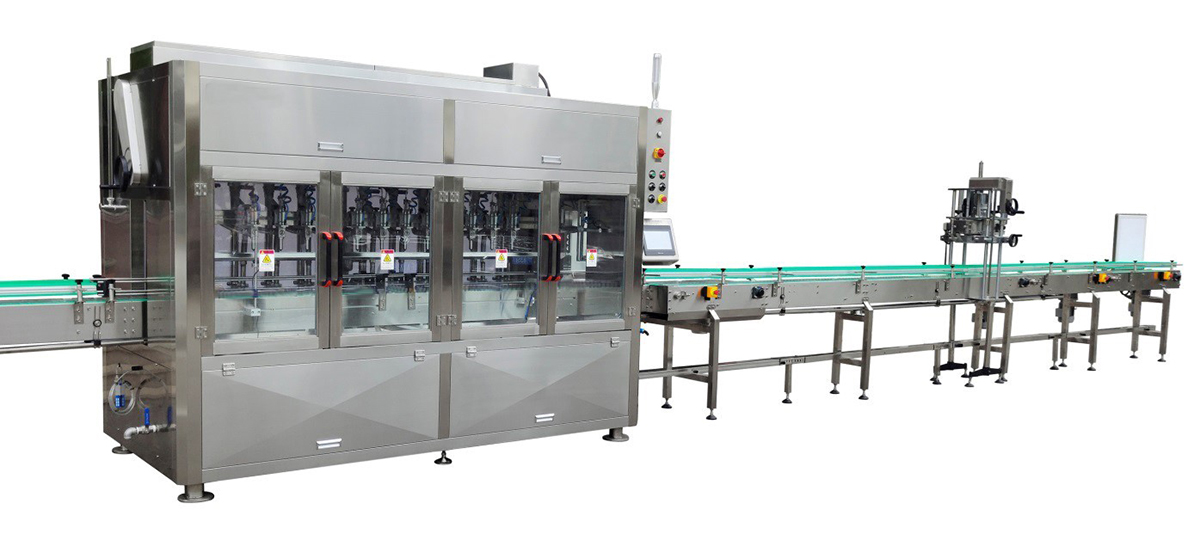

This machine is a one-pump high-precision edible oil, margarine, shortening, vegetable ghee filling machine. With high measurement accuracy and high speed, once put on the market, it was immediately recognized by well-known enterprises in the oil industry.

This machine is a high-precision metering pump filling machine, which greatly improves the filling accuracy and stability by using the advanced filling principle.

Advantages of filling method with one pump at one end:

• Each filling head can operate independently. Customers can flexibly set the number of filling heads to be started according to their own output.
• Each filling head has no influence on each other. It will not affect the whole filling operation because of a certain filling head failure (the failed filling head can be closed with one key, and the number of filling heads left after the program is closed by default so as to continue working).
• The pipeline pressure is more stable in the filling process. One-pump mode can greatly improve the metering accuracy and make the operation more stable (traditional flow metering mode causes excessive fluctuation of metering error or splash of oil because the final pressure is concentrated to close the filling head later).
• The filling machine is elegant and clean in appearance, with dustproof function, and conforms to food hygiene standards.
• The unique filling head design and vacuum suction system completely eliminate the phenomenon of oil leakage, dripping and splashing in the filling head.
• The filling host comes with built-in transit tank.
• The liquid level switch is used to link the oil supply pump. When it is lower than the set value, the pump automatically starts to supply oil. The equipment filling is not limited by external conditions such as the distance and height of the raw material tank.
• The liquid level of oil is controlled to float in a small range, which stabilizes the feeding pressure, reduces the metering error caused by the liquid level pressure difference to the greatest extent, and makes the filling accuracy higher.
• The built-in transfer tank and the built-in power of one pump make the empty tank more convenient, and reduce the oil mixing phenomenon of different kinds of oil products to the greatest extent. After work, do not sweep the line.
• This machine is equipped with a gas storage tank and a pressure switch, which can effectively guarantee the whole machine's gas supply. When the displayed air pressure value is lower than the set value, the oil nozzle will not be opened, so as to avoid false repair report caused by unstable pressure.
• Mechanical operation is adopted, and the special lifting device can accurately position the empty bottles with irregular arrangement, so as to ensure that the position of the nozzle and the bottle mouth is consistent and the positioning is accurate during filling.
• Touch screen man-machine interface, simple operation, PLC control system, fast operation speed and stable performance.
• The filling machine has its own temperature display, which can make the staff know the temperature of the filled oil in real time.
• One-click conversion of filling specifications. The unique and highly humanized formula setting inside the filling machine is convenient for users to preset and store different filling specifications. Each specification data is stored in the computer by formula function. When changing the specification and filling, there is no need to check the parameters. The filling specification can be changed by pressing the corresponding "formula key" directly. The operation is simple and practical.
• The equipment itself has the function of automatic calibration of filling quantity. If there is an error in measurement and wrong weight data is input, the computer can automatically calculate the correct data and automatically correct it, without manual calculation and input.
•  Filling machine special oil nozzle oil tank. After the power supply is turned off at the end of work every day, the oil receiving tank will automatically pop up to catch the residual oil dripping from the nozzle, thus effectively ensuring the cleanliness and hygiene of the equipment.

Main accessories:

Main accessories	Indroduction	Equirment Photo

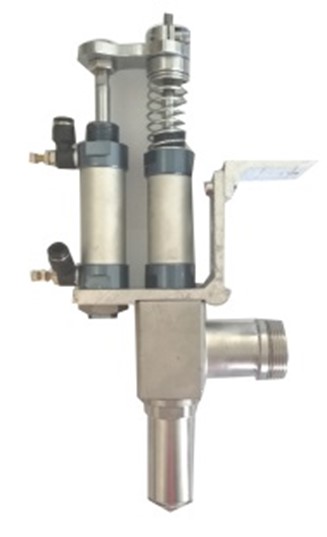

Filling head	The filling head is a self-developed split structure, that is, the filling head and the cylinder are connected in vitro. This structure can be disassembled and replaced separately, and it is convenient to maintain.The standard parts are selected to facilitate customers to purchase and replace nearby, shorten the maintenance time and reduce the maintenance cost. Fast, medium and slow three variable frequency filling, with adjustable speed, to ensure no dripping during filling.
Crawler capping machine	The squeezing mode is formed by crawler transportation, so that the bottle and the cover are squeezed and closed, and the function of pressing the bottle cap is achieved, so that the bottle body will not be squeezed and deformed, and it is stable, noiseless and free of air pressure.The height can be flexibly adjusted according to the different heights of the target barrel. There is no need to disassemble the capping machine to adjust the height, but only the upper and lower heights can be adjusted by the top hand-operated mechanism. After the height is adjusted, the capping machine is equipped with a locking device, and the capping machine height is locked after locking, so that the capping machine height will not be loosened due to long-term capping.
