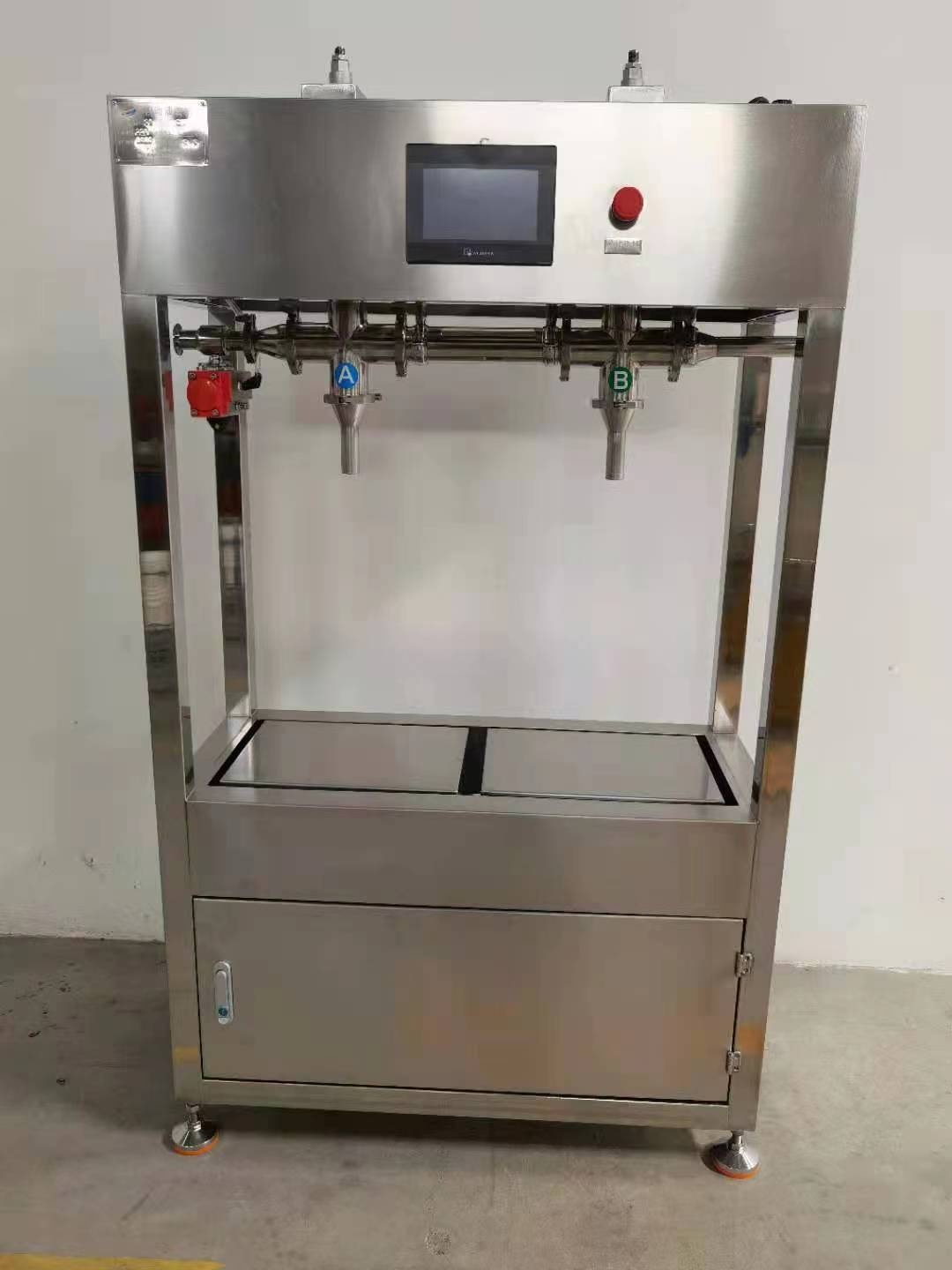

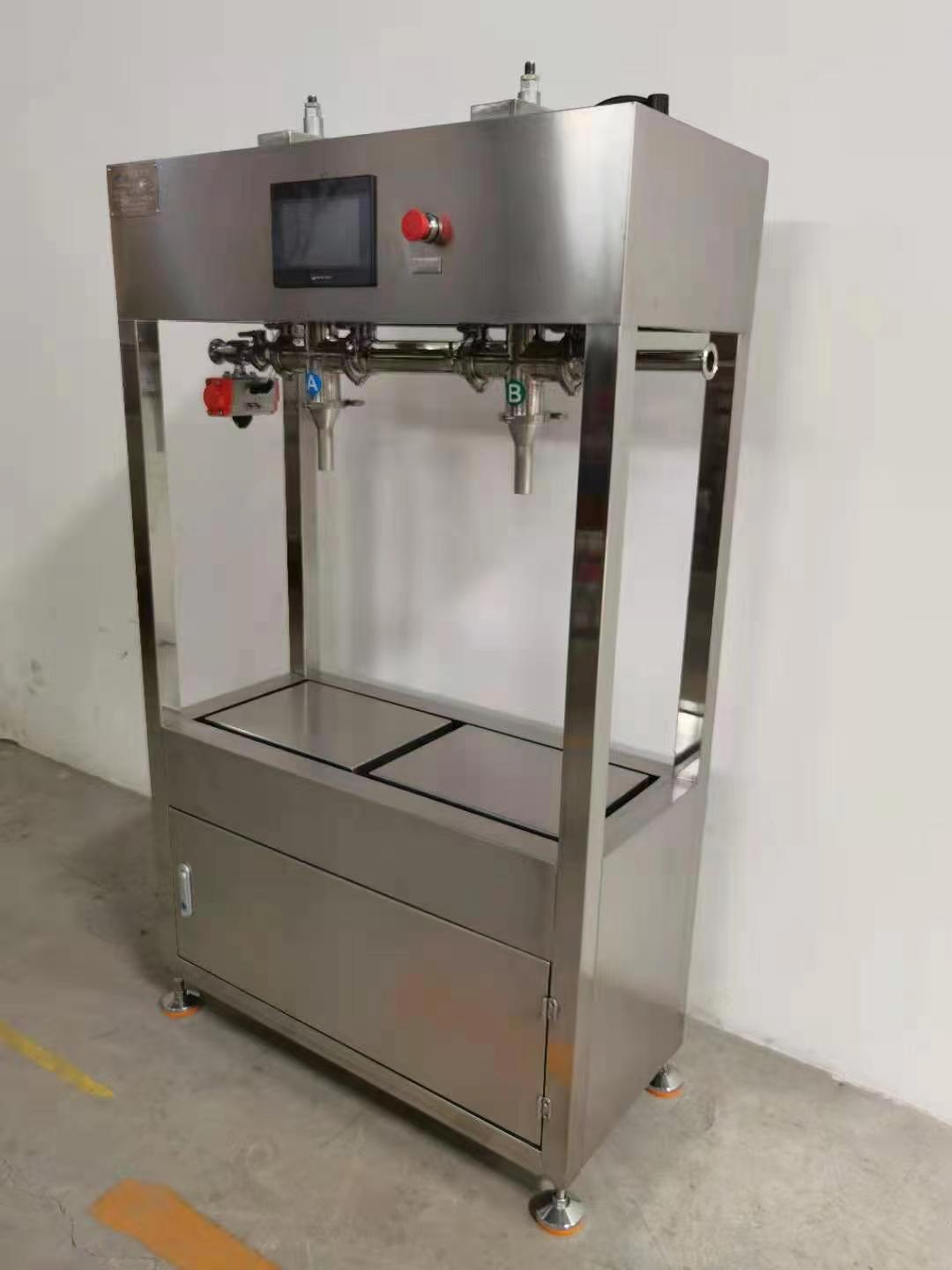

Shortening Filling Machine-Bag in Box

Short Description:

Shortening filling machine is an industrial equipment designed to accurately measure, fill, and package shortening (a semi-solid fat like vegetable shortening or lard) into containers such as bag in box, tubs, jars, pouches, or cans. These machines are commonly used in margarine processing line, shortening processing line, vegetable ghee processing line, bakeries, and packaging facilities.

Send email to us

Product Detail

Product Tags

Key Features of a Shortening Filling Machine:

Accurate Filling – Uses v weigh filling systems for precise measurements.
Material Compatibility – Handles viscous, semi-solid fats without clogging.
Container Handling – Works with various container types (bag in box plastic tubs, metal cans, etc.).
Automation Level –manual container placement, auto filling and stopping
Hygienic Design – Made from food-grade stainless steel for easy cleaning (important for food safety).
Speed & Efficiency – Filling rates vary from small-scale (5-20 containers/min) to high-speed production.

Types of Shortening Fillers:

Weigh Fillers – For high-precision filling by weight.

Applications:

Packing vegetable shortening, lard, margarine, or similar fats.
Used in bakeries, snack food production, and industrial food packaging.

Technical Spec.

Man-machine interface operation.
Siemens PLC.
Real-time operation status indication.
Tare test started all-round bucket irrigation.
Gross weight/net weight (each barrel automatically peeled) filling method.
Automatic zero tracking, the number of barrels accumulated.
Automatic hacks of weight error.
Boot automatic zero, power off protection device.
Emergency stop protection device.
With fault detection function.
Fast and slow dual speed Settings
The machine base and the part in contact with the material are made of 304 stainless steel, and the scale table is made of 304 stainless steel plate.
Overall size : 1000X450X1650mm
Installed weight : 150KG.
Filling specification : 4L-30L
Filling error : ≤0.2%.
Index value : 5g.
Power supply : single-phase AC220V/50HZ.
Air source : 0.6mpa.
Weighing range : 60KG.
Foot force module imported from Taiwan.
Irrigation gun outlet : φ25MM
Including 4m belt conveyor & roller conveyor
Including weight balance
